Wireless Bridge

/

NTE10GQ/2+0(20Gbps)/NTE3GQ/NTE1GQ/NTE1G (ULL)

NTE10GQ

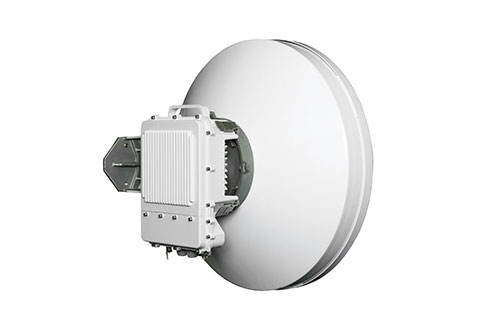

2ft antenna system

2ft antenna system

Features

E-band 71~76/81~86GHz point-to-point Wireless Bridge

10Gbps (10GE) full-duplex (1+0), 20Gbps Extension (2+0, Dual_10Gbps)

256QAM-to-QPSK Hitless ACM (Adaptive Coding and Modulation)

IEEE1558v2, SyncE

Low latency < 48 us

Reliability - up to 99.999%

Easy ant/ODU assembly at field

Easy polarization deployment

Easy azimuth/elevation alignment

IP66 ODU enclosure

All weather conditions

1ft antenna system

1ft antenna system / Flat antenna system

Applications

5G Backhaul, Fronthaul, Midhaul Fixed Wireless Access

P2P extra power up to +33dBm (2W optional)

High speed financial network

3G/4G LTE IP backhaul

Hospital/campus application

Last mile access - extend high speed services

Surveillance/security

2+0 (20Gbps solution)

2+0 (20Gbps solution)

2+0 (20Gbps solution)

Features

E-band 71~76/81~86GHz point-to-point Wireless Bridge

10Gbps (10GE) full-duplex (1+0), 20Gbps Extension (2+0, Dual_10Gbps)

256QAM-to-QPSK Hitless ACM (Adaptive Coding and Modulation)

IEEE1558v2, SyncE

Low latency < 48 us

Reliability - up to 99.999%

Easy ant/ODU assembly at field

Easy polarization deployment

Easy azimuth/elevation alignment

IP66 ODU enclosure

All weather conditions

Applications

5G Backhaul, Fronthaul, Midhaul Fixed Wireless Access

P2P extra power up to +33dBm (2W optional)

High speed financial network

3G/4G LTE IP backhaul

Hospital/campus application

Last mile access - extend high speed services

Surveillance/security

NTE3GQ

2ft antenna system

2ft antenna system

Features

E-band 71~76/81~86GHz point-to-point Wireless Bridge

2.6 Gbps full-duplex (1+0), 5.2Gbps Extension (2+0, Dual 2.6Gbps)

256QAM-to-QPSK Hitless ACM (Adaptive Coding and Modulation)

10GE SFP interface

IEEE1558v2, SyncE

Low latency < 48 us

Reliability - up to 99.999%

Easy ant/ODU assembly at field

Easy polarization deployment

Easy azimuth/elevation alignment

IP66 ODU enclosure

All weather conditions

1ft antenna system

1ft antenna system / Flat antenna system

Applications

5G Backhaul, Fronthaul, Midhaul Fixed Wireless Access

P2P extra power up to +33dBm (2W optional)

High speed financial network

3G/4G LTE IP backhaul

Hospital/campus application

Last mile access - extend high speed services

Surveillance/security

NTE1GQ

2ft antenna system

2ft antenna system

Features

E-band 71~76/81~86GHz point-to-point Wireless Bridge

1Gbps full-duplex (1+0), 2Gbps Extension (2+0, Dual 1Gbps)

256QAM-to-QPSK Hitless ACM (Adaptive Coding and Modulation)

10GE SFP interface

IEEE1558v2, SyncE

Low latency < 48 us

Reliability - up to 99.999%

Easy ant/ODU assembly at field

Easy polarization deployment

Easy azimuth/elevation alignment

IP66 ODU enclosure

All weather conditions

1ft antenna system

1ft antenna system / Flat antenna system

Applications

5G Backhaul, Fronthaul, Midhaul Fixed Wireless Access

P2P extra power up to +33dBm (2W optional)

High speed financial network

3G/4G LTE IP backhaul

Hospital/campus application

Last mile access - extend high speed services

Surveillance/security

NTE1G (Ultra Low Latency)

2ft antenna system

2ft antenna system

Features

E-band, 71~76/81~86GHz

1.25 Gbps full-duplex, point-to-point FWA

Long distance - up to 25 km(15.6 miles)

Ultra low latency - 20 ns

Reliability - up to 99.999%

Easy ant/ODU assembly at field

Easy polarization deployment

Easy azimuth/elevation alignment

IP66 ODU enclosure

All weather conditions

1ft antenna system

1ft antenna system / Flat antenna system

Applications

High speed financial network

3G/4G LTE IP backhaul

Hospital/campus application

Last mile access - extend high speed services

Surveillance/security
